Soccer-playing robots: end-to-end AI for perception and control in the RoboCup

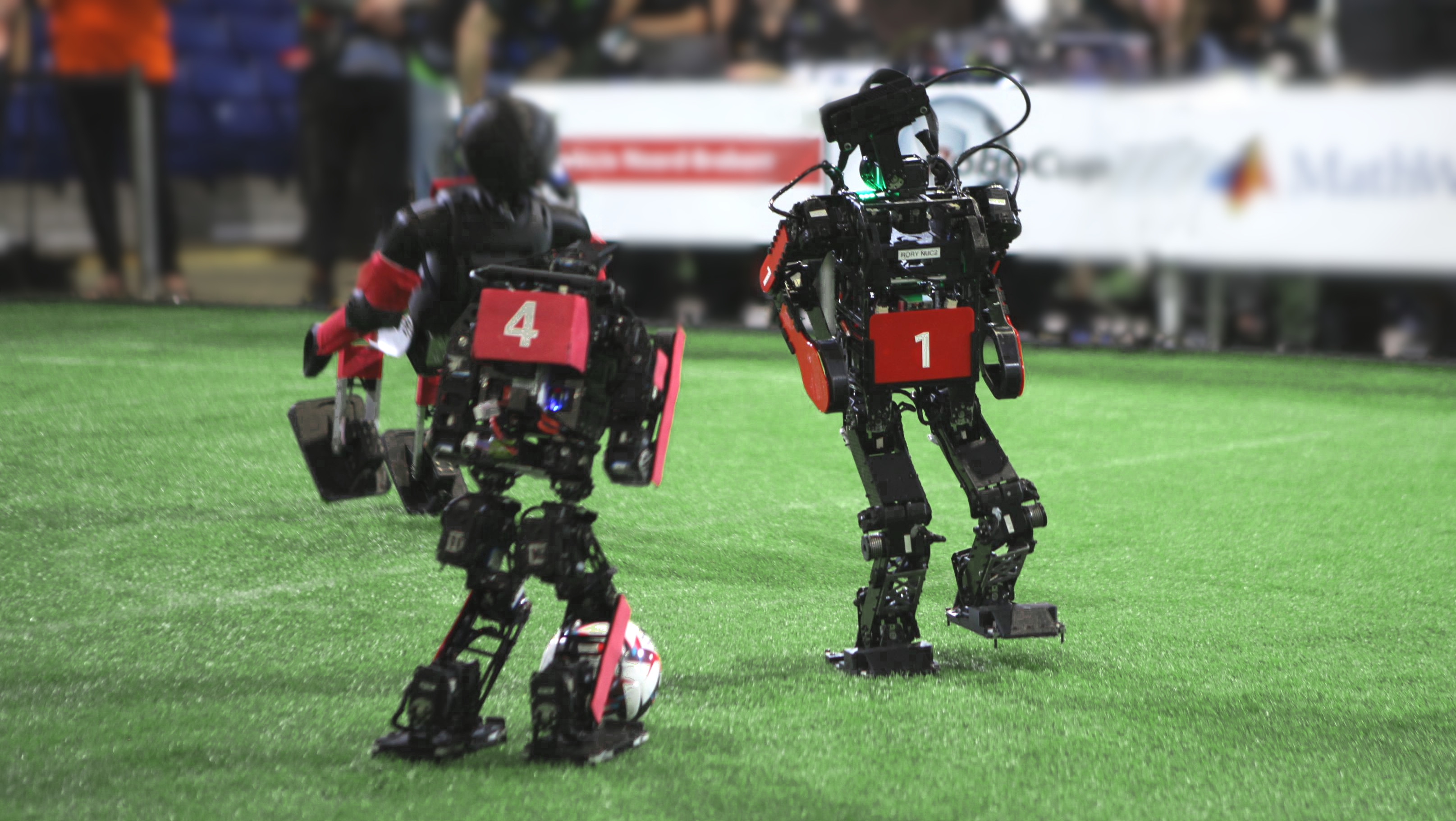

_{Photo: Vahl / Keller}

Our project deals with the perception and control of autonomous football-playing robots using an innovative, machine-learned neural network (AI).

This idea stems from our previous development and research activities in the student working group and research group, the ‘Hamburg Bit-Bots’. This is a team that has been taking part in the international RoboCup research competition since 2012. Basic research in the field of autonomous robots and AI is carried out here in various disciplines and leagues (including outside of football). This has also resulted in innovations with social impact beyond the RoboCup [1]. We have been supporting the team from the University of Hamburg for several years and have been involved in a number of competitions, scientific publications and other funded projects.

The project aims to develop a novel alternative to the classic methods of perception and control of our autonomous robots. Up to now, these tasks have been performed by a large number of complex individual components, with the exception of image processing using convolutional neural networks [2, 3], everything has been implemented by manually programmed software (e.g. self-localisation, strategy, path planning, motion generation, etc., see the following repository). Instead, we would like to develop and use a so-called end-to-end (E2E) machine-learned neural network (such as ChatGPT [4]). This differs from classic approaches, as an overall component is to be learnt that does not require any other manually programmed software components.

As input, the neural network will receive camera images, the rotational position of the robot (Inertial Measurement Unit) and information from the human referees. The output will be motor movements, i.e. the positions of the joints for each point in time. This approach offers significant complexity reduction in the execution on the robot as only one software component is executed. This could also lead to reduced computing power requirements, as the neural network can implicitly approximate complex algorithms. After imitating the classic approaches, the behaviour of the robot can also be improved with reward-based learning. The planned network is a good starting point for this, as it should already have mastered the basics. This makes training with reward-based learning more efficient.

For machine learning, we are building on raw data from past competitions and research projects as well as data from cooperation with other RoboCup teams and international research groups. As part of the project, the data will be processed (cleansing, formatting, normalisation, etc.) and made available to the research community in a new form.

Our project is practice-orientated basic research with which we want to answer the following research questions:

• Is it possible for a single neural network to learn complete control (perception, planning and action) of a robot in RoboCup?
• How does the small amount of heterogeneous data from several robot types affect the learning process?

These questions could provide insights into possible applications in other dynamic areas of robotics (e.g. use of humanoid robots in industry or in the household). Therefore, we aim to publish a paper with our results that describes our scientific approach as well as the results in detail and in a reproducible way.

And here is a short video presentation of the project:

References:

[1] C. Marzahl, M. Aubreville, C. A. Bertram, et. al., „EXACT: a collaboration toolset for algorithm-aided annotation of images with annotation version control,“ Scientific reports, Bd. 11, p. 4343, 2021. DOI: 10.1038/s41598-021-83827-4
[2] M. Bestmann, J. Güldenstein, F. Vahl und J. Zhang, „Wolfgang-OP: A Robust Humanoid Robot Platform for Research and Competitions,“ in 2020 IEEE-RAS 20th International Conference on Humanoid Robots (Humanoids), 2021. DOI:  10.1109/HUMANOIDS47582.2021.9555808
[3] F. Vahl, J. Gutsche, M. Bestmann und J. Zhang, „YOEO–You Only Encode Once: A CNN for Embedded Object Detection and Semantic Segmentation,“ in 2021 IEEE International Conference on Robotics and Biomimetics (ROBIO), 2021. DOI: 10.1109/ROBIO54168.2021.9739597
[4] OpenAI, J. Achiam, S. Adler, et. al., GPT-4 Technical Report, 2024. arXiv: 2303.08774 [cs.CL]

Additional References:

[5] Z. Li, F. Liu, W. Yang, S. Peng, and J. Zhou, „A Survey of Convolutional Neural Networks: Analysis, Applications, and Prospects,” in IEEE Transactions on Neural Networks and Learning Systems, Bd. 33, pp. 6999–7019, 2022, DOI: 10.1109/TNNLS.2021.3084827
[6] T. Haarnoja, B. Moran, G. Lever, et. al., „Learning agile soccer skills for a bipedal robot with deep reinforcement learning,“ Science Robotics, Bd. 9, p. eadi8022, 2024. DOI: 10.1126/scirobotics.adi8022
[7] F.-L. Fan, J. Xiong, M. Li und G. Wang, „On Interpretability of Artificial Neural Networks: A Survey,“ IEEE Transactions on Radiation and Plasma Medical Sciences, Bd. 5, pp. 741-760, 2021. DOI: 10.1109/TRPMS.2021.3066428
[8] N. Fiedler, M. Bestmann und N. Hendrich, „ImageTagger: An Open Source Online Platform for Collaborative Image Labeling,“ in RoboCup 2018: Robot World Cup XXII, 2018. DOI: 10.1007/978-3-030-27544-0_13
[9] M. Bestmann, T. Engelke, N. Fiedler, J. Güldenstein, J. Gutsche, J. Hagge und F. Vahl, „TORSO-21 Dataset: Typical Objects in RoboCup Soccer 2021,“ in RoboCup 2021: Robot World Cup XXIV, 2021. DOI: 10.1007/978-3-030-98682-7_6
[10] S. Macenski, T. Foote, B. Gerkey, C. Lalancette und W. Woodall, „Robot Operating System 2: Design, architecture, and uses in the wild,“ Science Robotics, Bd. 7, p. eabm6074, 2022. DOI: 10.1126/scirobotics.abm6074
[11] A. Paszke, S. Gross, F. Massa, et. al., „PyTorch: An Imperative Style, High-Performance Deep Learning Library,“ in Advances in Neural Information Processing Systems, Bd. 32, 2019, p. 8024–8035. [Online]. Available: http://papers.neurips.cc/paper/9015-pytorch-an-imperative-style-high-performance-deep-learning-library.pdf
[12] C. R. Harris, K. J. Millman, S. J. Van Der Walt, et. al., „Array programming with NumPy,“ Nature, Bd. 585, p. 357–362, 2020. DOI: 10.1038/s41586-020-2649-2
[13] W. McKinney und others, „pandas: a Foundational Python Library for Data Analysis and Statistics,“ Python for high performance and scientific computing, Bd. 14, p. 1–9, 2011.
